Digital Potentiometer DPI-01U-4MM

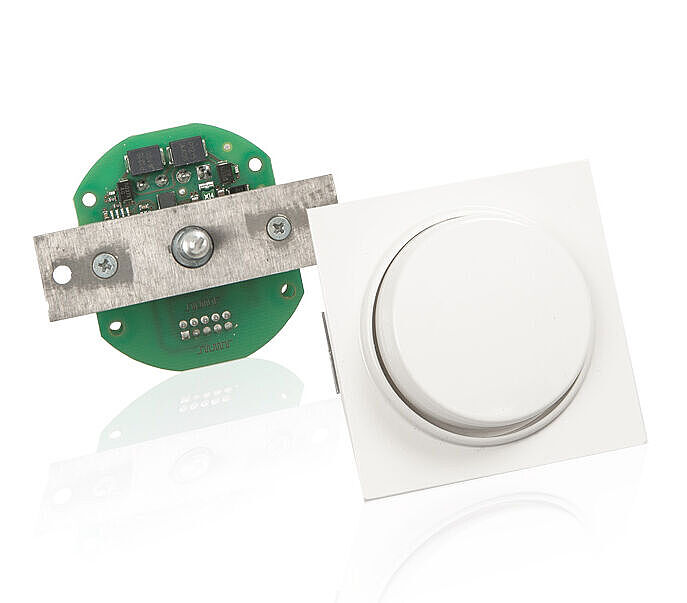

Application example: Cover Gira S-Color
(cover not included in scope of delivery)


The Digital Potentiometer DPI-01U-4MM with button is designed for standard dimmer covers for mounting in a flush-mounted box. It is designed for applications that require continuous motion.

Quick Facts

  • rotary dimmer for switch box
  • continuous motion
  • potentiometer angular momentum with clockwise rotation
  • potentiometer angular momentum with counterclockwise rotation
  • evaluation of the push-button
  • 4 speed settings
  • activation and locking of the potentiometer

The Digital Potentiometer DPI-01U-4MM is designed for applications that require continuous motion.

Examples of this are: The function "brighter" or "louder" is always performed by turning clockwise, "darker" or "quieter" is always performed by turning counterclockwise.

Electrical Data

Shaft diameter 4mm
Operating voltage 12-35V DC
Current consumption 25mA at 24V
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Connection screw terminals 2.5mm² for BUS
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85 % r.h. non-condensing
Protection class IP 00

Design, Dimensions, Weight

Design PCB with mounting plate and adapter nut for standard dimmer covers for mounting in a flush-mounted box
Dimensions HxWxD 49x58x52mm
Weight approx. 52g without cover

Ordering Data and Conformity

Type designation DPI-01U-4MM
Article no. 80023241
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Technical Drawings

Wiring Diagrams

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located on the circuit board of the module.

Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOff / OnError BUS
blinkingInterference-free data transmission via the BUS line

Pin Assignment

4-pole plug back side

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (Subnet RS-485)
B BUS B (Subnet RS-485)
